The Broil King® Regal™ S520 Built-In features 625 sq. in of primary cooking surface and includes 5 stainless steel Dual-Tube™ burners, solid stainless steel 9mm rod cooking grids, warming rack, stainless steel Flav-R-Wave™ cooking system, electronic igniter, and stainless steel ignition switch.
Performance Grill Features
Every Broil King is built with performance features that deliver unparalleled cooking versatility.
![](/desc_images/1245/886714LP_0.jpg)
Stainless Steel Warming Rack
The grates on the Broil King® stainless steel warming run front-to-back instead of side-to-side, making it easier to slide your spatula under food. In addition, the raised back prevents food from falling off of the back of the warming rack.
![](/desc_images/1245/886714LP_1.jpg)
Built-in Control Knob Lights
The control knobs illuminate creating a stylish look that you'll find attractive and functional after sunset.
![](/desc_images/1245/886714LP_2.jpg)
Stainless Steel Cooking Grids
Heavy stainless steel grids provide even heat and excellent heat retention for improved searing performance. The 9mm thickness of Broil King® heavy stainless steel cooking grids is among the heaviest in the industry. The spacing between each tine on the cooking grid, is designed to maintain an ideal combination of food contact surface for searing and open space allowing heat to radiate from the burner and Flav-R-Wave™. Learn more about which grids are better to use.
![](/desc_images/1245/886714LP_3.jpg)
Deluxe Accu-temp™ Thermometer
Our easy to read stainless steel thermometer has a probe that reaches deep into the oven, giving you a more accurate temperature reading.
![](/desc_images/1245/886714LP_4.jpg)

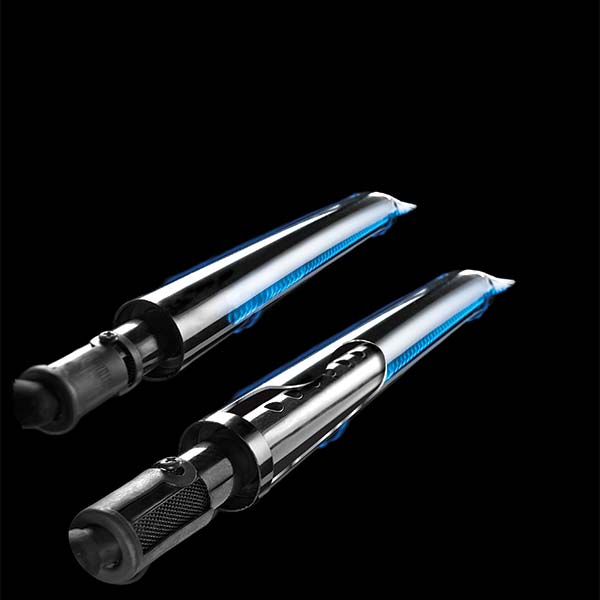

Dual-tube™ Burners
Made from high quality stainless steel, Broil King's large diameter, patented tube in tube side ported burners provide two rows of flame for the ultimate in even heat distribution.
![](/desc_images/1245/886714LP_5.jpg)
Flav-r-wave™ Cooking System
The stainless steel Flav-R-Wave™ cooking system provides superior heat distribution, protects the burner and vaporizes drippings for great barbecue flavor.
![](/desc_images/1245/886714LP_6.jpg)
Sure-lite™ Ignition System
The Sure-Lite™ electronic ignition offers you peace of mind knowing your barbecue grill will start quickly and easily.
![](/desc_images/1245/886714LP_7.jpg)
304 Stainless Steel Cookbox
The ultimate in durability, the entire cookbox of the Regal™ commercial series is made of 304-grade stainless steel.
Specifications
Performance
55,000 BTU stainless steel Dual-Tube™ burner system
Total Cooking Space
875 sq. in. total cooking surface including porcelain coated warming rack
Cookbox
625 sq. in. primary cooking surface
Cooking Grids
Solid 9mm stainless steel cooking grids
Burners
Five stainless steel Dual-Tube™ burners
Flavor System
Stainless steel Flav-R-Wave™ cooking system
Heat Control
Linear-Flow™ valves with 180° sensi-touch™ control
Ignition
Sure-lite™ electronic dual-electrode ignition system
Thermometer
Deluxe Accu-Temp™ thermometer
Cookbox
Stainless steel cookbox with cast aluminum end caps
Lid Design
Roll-action lids with cast aluminium end caps
Handles
Stylish and durable stainless steel handle
Drip Tray
Slide-out grease tray system
Construction
Rust resistant zinc coated steel components
Finish
Premium stainless steel finish
Built-in Lights
Built-in control knob lights
Fuel Type
Propane (LP) - designed for use with 20lb tank - not included. - or - Natural Gas (NG) - 10ft natural gas hose included.
Assembled Grill Dimensions
24.6 in. Height 24.8 in. Width 62.5 in. Length
Grill Weight
168.6 lbs (LP Model) 168.6 lbs (NG Model)
Cooking Surface
875 sq. in. total cooking surface
